PVC Ceiling Panel Extrusion Line

A PVC ceiling panel extrusion line turns rigid polyvinyl chloride (PVC) dry blend into wide, hollow, tongue-and-groove panels that clip into each other across a ceiling or a soffit. The panel is the thinnest wall and the widest section we extrude, and those two facts together decide everything about how the line is built.

A gutter that drifts out of tolerance still looks like a gutter. A ceiling panel that bows two millimeters across its width will not close on its neighbor, and the installer finds out on site with a full pallet already opened.

Flatness comes from the calibration table and the cooling profile, not from extruder output. Send us the panel width, the wall thickness and the interlock detail, and we will tell you the calibration length that panel needs before we quote anything else.

Panels This Line Produces

One ceiling line covers four panel families, and the difference between them lives in the die and the surface treatment rather than in the machine:

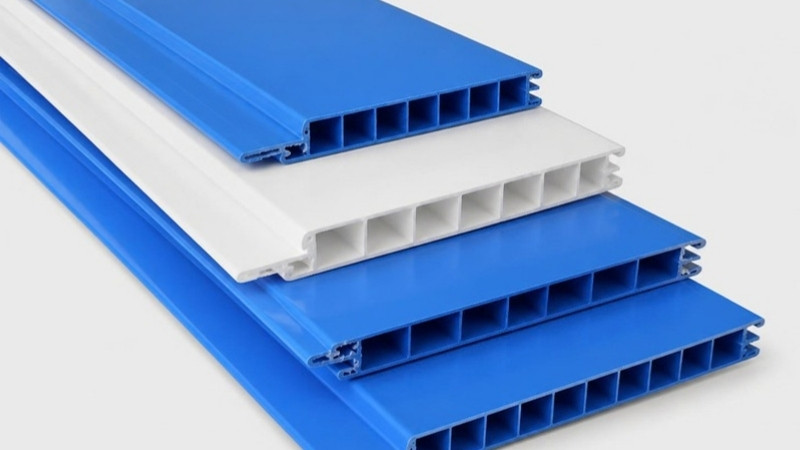

• PVC ceiling panels. Hollow multi-cavity sections with a tongue-and-groove edge, installed on furring across interior ceilings.

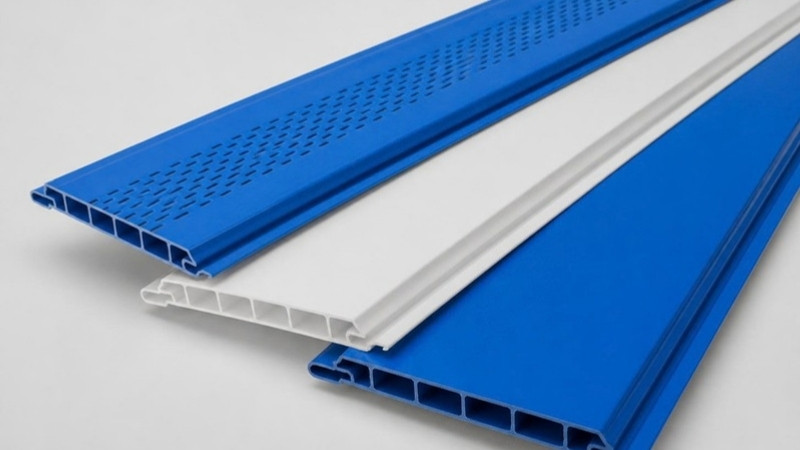

• PVC soffit panels. The same construction used under eaves and porch ceilings, often with a perforated or vented section run alongside the solid one so both come off the same tooling family.

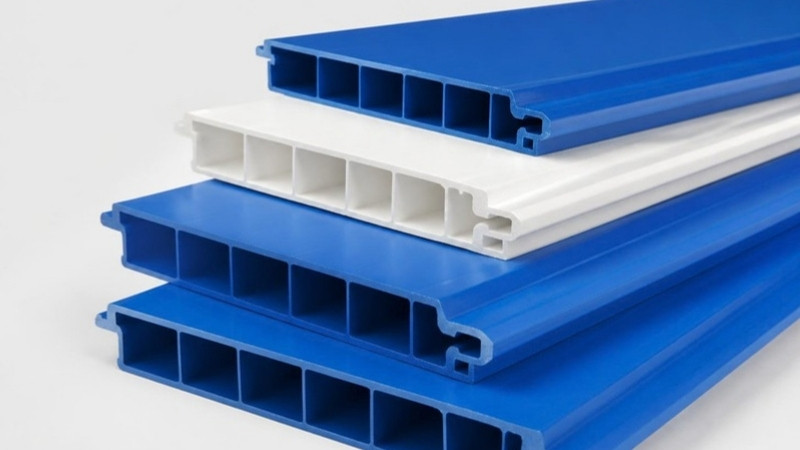

• PVC wall panels and cladding. Wider interlocks and heavier wall, sold into the same distribution channel as ceiling panel.

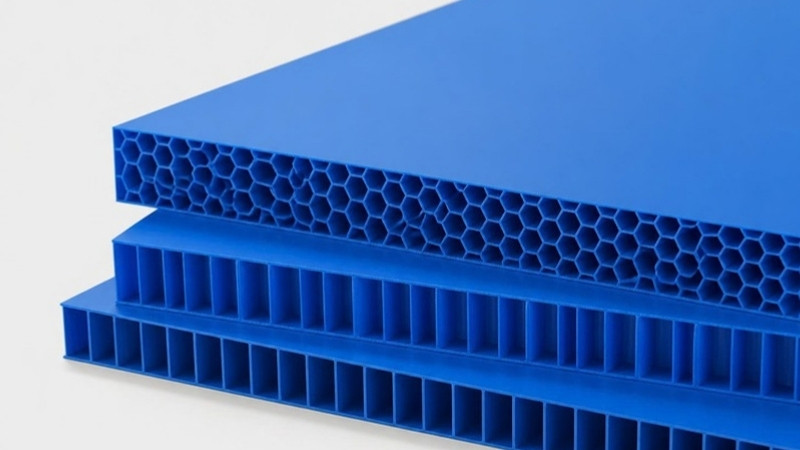

• Honeycomb and multi-rib panels. Higher cavity count for span and rigidity, which raises what the calibrator has to do rather than what the extruder has to do.

Surface is where these panels compete at retail, and it is added in line: our PVC wood-grained printing and ultraviolet (UV) curing equipment prints and cures the decorative face after the panel is cut, so a marble, wood or solid-color range runs off the same extrusion line.

How PVC Ceiling Panels Are Made

A complete PVC ceiling panel production line runs six stations, and each is sized against your panel section rather than picked off a catalog:

1. Dry blend preparation. A high-speed mixer brings PVC resin, stabilizer, filler and pigment to an even blend. On ceiling panel the filler loading is high and the wall is thin, which makes blend consistency a surface-quality issue rather than just a cost issue.

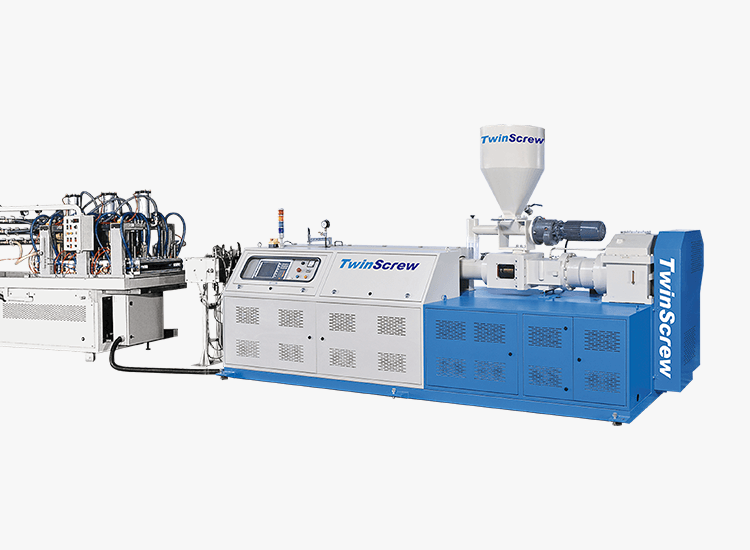

2. Main extruder. Panel work runs on our parallel counter-rotating twin screw extruder. Counter-rotating screws convey rigid dry blend positively and hold residence time short, and a wide panel die needs an even melt across its full width or the panel comes out thicker on one side.
3. Extrusion tool. Segment-type dies machined from stainless steel alloy with independently heated zones. Wide panel dies live or die on zone control: the melt has to leave the lip at the same temperature at the center as it does at the edges.
4. Vacuum calibrating system. Sectional calibration on a common base plate, each section with its own vacuum and cooling water connection. On a thin-wall hollow panel this station sets both the cavity geometry and the flatness the installer will judge the product on.
5. Profile caterpillar haul-off. Pulls the panel at a speed matched to extruder output. Wide panels need even grip pressure across the full face, because a haul-off that bites harder on one side introduces a twist nothing downstream can correct.
6. Saw. Cuts to length in line, synchronized with the haul-off.

Printing and UV curing follow the saw when the panel needs a decorative face. Plan that station with the line, not after it.

Why Wide Thin-Wall Panels Are the Hardest Profile to Hold

Ceiling panel is a PVC profile like a window frame or a gutter, but the geometry pushes three things to their limit:

• Width against wall thickness. A panel is wide and thin, so there is very little material to carry heat away evenly. Uneven cooling across the width shows up as bow or as a twist along the length, and both appear after the panel has left the line.
• The interlock has to close on itself. Tongue and groove are cut in the same die and have to mate panel to panel, batch to batch. Nothing else on the line is checked as directly by the end user: the installer either clips two panels together or sends the pallet back.
• The face is the product. Ceiling panel is bought on appearance. Flow lines, gloss variation and color drift are rejections even when the section is dimensionally perfect, which is why melt homogeneity and die zone control carry more weight here than on a structural profile.
